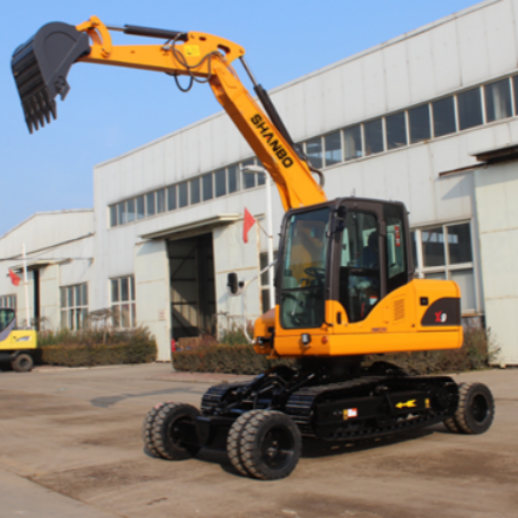

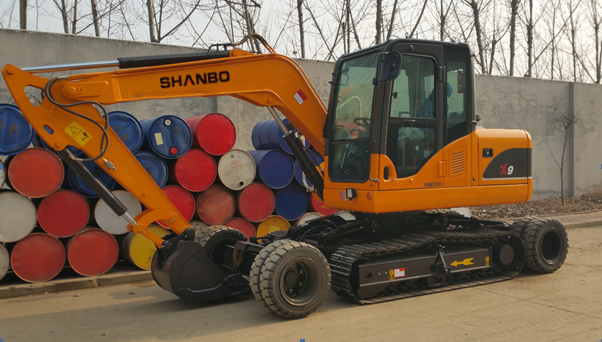

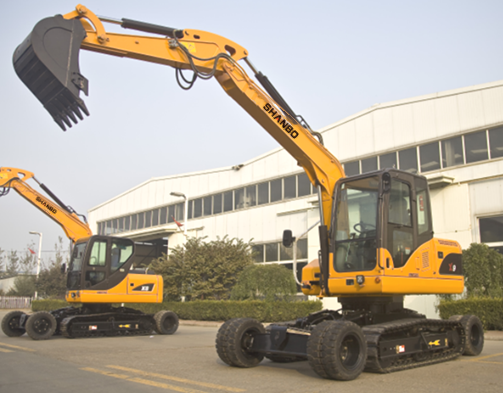

X9 Wheeled Crawler Excavator.

X9 Wheel-crawler excavator is with national invention patent which is totally researched and developed by our company, the first design in the world. Convenient moving, fast travelling speed, quick transferring from wheels to track walking. The wheel travel device can be quickly disassembled when required.

Product parameters：

整机重量		Total weight	8530kg / 8840KG
标准铲斗容量		Bucket capacity	0.3m3
发动机 Engine	型号	Model	Yanmar 4TNV98 / 4TNV98T-ZCSLK(Euro 5 engine)/Yuchai engine,55kw
	排量	Displacement	3.054L / 3.319L
	额定输出功率/转速	Engine power/rpm	46.3 kw/56.5kw-2200 rpm
	最大扭矩	Max. torque	193.2-210.6 N.m/126±100rpm 273.3-298.2N.m/1600±100rpm
速度 Speed	轮胎行走速度	Wheel travelling speed	28 km/h
	履带行走速度	Track travelling speed	2.3km/h
	回转速度	Swing speed	9rpm
	最大爬坡能力	Max. grade ability	30°
液压及液压体容量 Hydraulic system	液压系统	Hydraulic system	力士乐 Rexroth
	泵型式	Pump	变量 variable capacity pump
	设定压力	Pressure	25 Mpa
	流量	Displacement	132 L/min
	液压油箱容量	Capacity of hydraulic tank	175 L
	燃油箱容量	Capacity of fuel tank	150 L
	发动机油容量最大	Engine oil capacity	12 L

A 总长度 3.6m动臂+2m斗杆	Total length	6570mm
B 总高度 3.6m动臂+2m斗杆	Total height	2982mm
C 后端回转半径	Counter weight turning radius	1836
D 发动机机罩高度	Engine hood height	2104
E 配重离地间隙	Counter weight ground clearance	1120
F 上部回转平台总宽度	Upper structure width	2000
G 驾驶室高度	Cabin height (wheels up)	2982
H 轮胎总宽度	Tire width	2120
J 最小离地间隙	Ground clearance	270
K 升起后轮间距	Wheels up wheel gauge	3400
L 升起后回转中心至后桥间距	Distance of swing center to rear wheel (wheels up)	1682
M 降下后轮间距	Wheels down wheel gauge	3560
N 降下后回转中心至后桥间距	Distance of swing center to rear wheel (wheels down)	1767
O 降下后轮胎离地间隙	Rear wheel ground clearance(wheel up)	300
P 升起后履带离地间隙	Tracks ground clearance(wheel down)	330
Q 升起后总高	Total height (wheels down)	3190
R 履带轮距	Track wheel track	2050
S 履带宽度	Track width	400
T 左右履带总宽度	Track outer width	2160

工作装置Working device		3.5m动臂+2m斗杆 Boom 3.5m+Arm 2m
A 最大挖掘半径	Max. digging radius	6680
A1 最大挖掘半径（地面）	Max. digging radius (on ground)	6555
B 最大挖掘深度	Max. digging depth	3572
C 最大切削高度	Max. digging depth	6955
D 最大卸载高度	Max. dumping height	5245
E 最小回转半径	Min. turning radius	2540
F 最大垂直挖深	Max. vertical digging depth	3255
铲斗挖掘力（KN）	Bucket digging force (KN)	56
斗杆挖掘力（KN）	Bucket arm digging force (KN)	36

Product features：

Product features:

Imported Yanmar engine, powerful and reliable performance. Meet to the china Ⅲ emission standards, saving fuel 30% than last generation.

Import Germany Rexroth system, stable performance. Equipped with reinforced walking device and famous tires.

1. Rhino's unique wheeled crawler excavator has an international invention patent, which solves the shortcomings of slow transportation speed and high transportation cost, and also solves the problem of poor stability.

2. It uses Yangma engine/Yuchai engine to provide powerful power, high efficiency and fuel economy.

3. Rhino developed patented seam tires to prevent stones from getting stuck.

4. The upgraded cast iron counterweight provides high operability and stability.

5. The hydraulic system uses German Rexroth pumps and valves to provide smoother operation and faster response time.

6. Wheel side reduction shaft ensures better performance, complex road conditions and improved passability in the following aspects.
