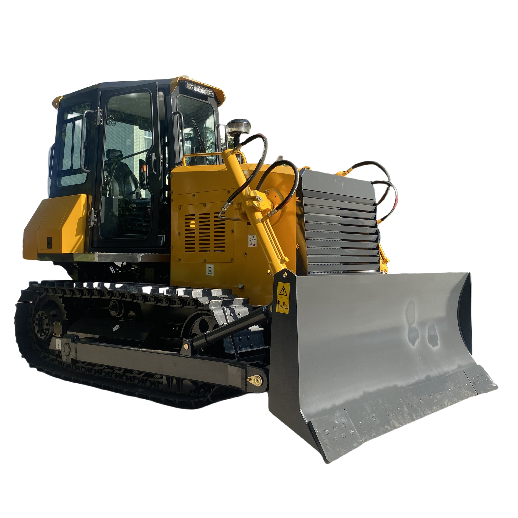

SD10 Small Bulldozer.

SD10 Small Bulldozer.

Various working devices such as straight shovel, angle shovel and coal shovel can be installed to meet the construction needs of various working conditions.
CONTACT US
SD10 Small Bulldozer.

Product parameters:

基本参数

Basic parameters

性能参数

Performance specifications

整机重量(kg )

 Total weight

10400

前进 1-4 档km/h

Forward 1-4 gear


2.6~ 10.4

发动机功率/转速(kw/ r/min)

Engine power /speed


81/2300

后退 1-2 档km/h

Reverse 1-2 gear


3.7 ~6.7

发动机燃油消耗率(g/km.h )

Fuel consumption of the

engine


≤220

接地比压 (kPa )

Land pressure

54.4

发动机最大扭距(N.m )

Engine max torque


414




整机尺寸

Dimensions

作业范围及参数

Operating scope  and   parameters

总长(mm)

Overall length

4190

铲刀最大提升高度( mm )

Blade max lifting height

830

总宽度(mm)

Overall width

2935

铲刀入土深度( mm )

Blade max digging depth

350

总高度(mm)

Transport height

3020

牵引装置/松土器(选装)

Towing

equipment/Ripper(optional)

固定式/三齿Fixed/three-toothed

推土铲(宽)(mm )

Bulldozer shovelW

2935



推土铲(高)(mm )

Bulldozer shovel  H

960



履带宽度(mm )

Caterpillar track board width

450




Product features:

1. This machine adopts the diesel engine produced by the joint venture technology of Dongfanghong and Ricardo Company in Britain, which meets the national emission requirements of Phase II, with low noise, large torque, energy saving and environmental protection;

2. Using digital instruments to monitor the working state of the whole vehicle in real time;

3. The optimized walking mechanism and reinforced chassis adopt customized profiles made of special materials, which greatly improves the strength and impact resistance of the whole machine.

4, the hydraulic system adopts fluorine rubber ring, which ensures efficient and reliable sealing;

5. Dry, multi-plate structure, often combined with main clutch, with large torque reserve and reliable operation;

6. The gearbox is 4f-2r mechanical shift gearbox with simple operation, convenient maintenance and reliable use;

7. Transmission: Two-stage, straight-toothed and large-modulus gear transmission is adopted, which has the advantages of strong bearing capacity and high reliability;

8. The whole vehicle comes standard with LED headlights to improve the construction efficiency at night;
