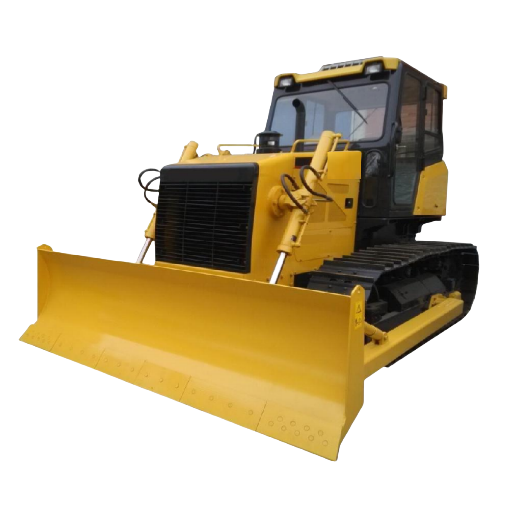

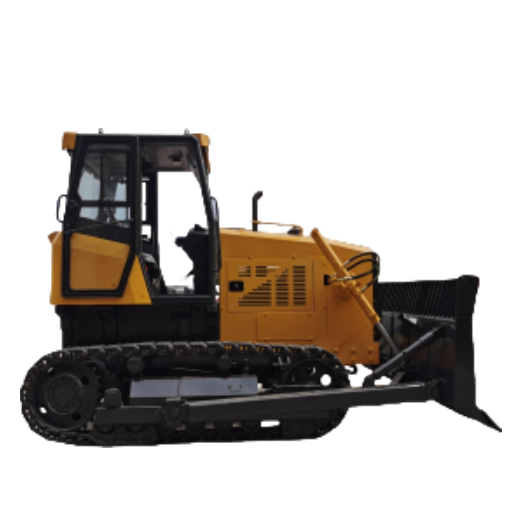

Small Bulldozer SD12.

Small Bulldozer SD12.

There are many devices to choose from for the working device of Shanbo SD12 bulldozer, such as straight shovel, sanitation shovel, corner shovel and scarifying device.
CONTACT US
Small Bulldozer SD12.
Small Bulldozer SD12.

Product parameters:

 Engine model


LR6A3Z-20

Max towing force

115kN

Fuel consumption of the engine

≤246g/kw.h

Engine max torque

526N.m

Total weight

13000kg

Forward travel speed

Forward four gears2.4~10.6km/h

Backward travel speed

Back to second gear:3.8~7.0km/h

Track board with

500mm

Land pressure

51kpa

track-center distance

1860mm

Overall dimension(L×W×H)

5560 (including scarifier) x

3135 × 3230mm

Bulldozer shovel(W×H)

3135×970mm

Blade max ifting height

894mm

Blade max digging depth

400mm

Twing equipment/Scar

fier(optional)


Fixed/Three Teeth


Product features:

Product Description:


1. This machine adopts a high-pressure common rail diesel engine produced by a joint venture between Dongfanghong and Ricardo in the UK, which meets the national Phase II emission requirements, has low noise, large torque, and is energy-saving and environmentally friendly;

2. The four wheel belt of well-known domestic brands, as well as the optimized walking mechanism and reinforced chassis, use customized profiles made of special materials, greatly improving the overall strength and impact resistance of the machine.

3. The hydraulic system adopts fluorine rubber rings, which have high efficiency and reliability in sealing. The hydraulic oil tank is separated from the diesel tank for easy maintenance and repair;

4. All vehicles are equipped with LED headlights as standard, improving night construction efficiency;

5. Install protective devices at the front end of desert air filters and radiators to effectively improve heat dissipation performance, increase maintenance intervals, and better adapt to special operating conditions such as coal yards, deserts, and garbage dumps;

6. Adopting an electronic monitoring electrical system to monitor the entire machine in real-time and ensure its normal operation;

7. Working device: There are various devices to choose from, such as straight tilt shovel, sanitation shovel, angle shovel, and soil loosening device.
