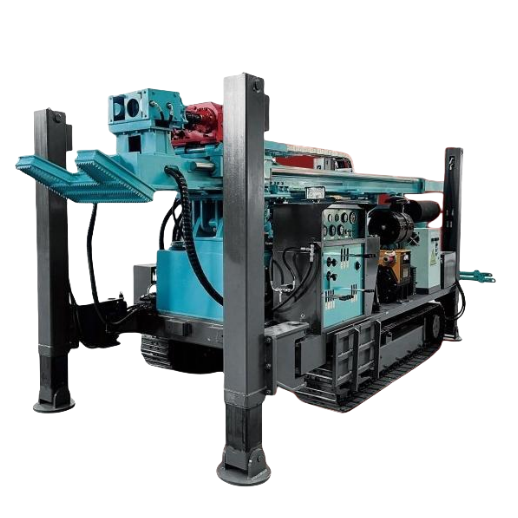

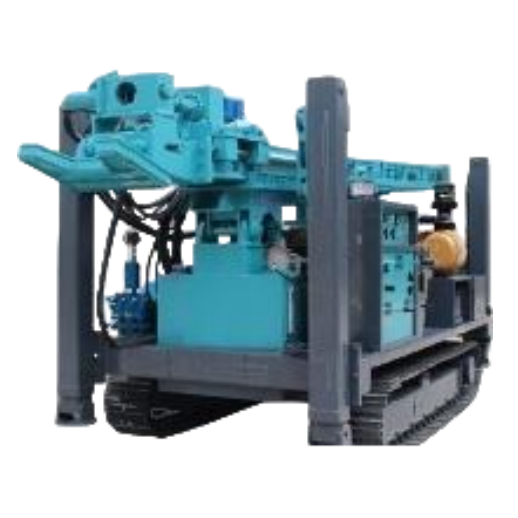

In-the-hole drill FD600-800.-Drilling machine-

Our advantage：

1.Accurate coring: representative core samples can be obtained to provide accurate and reliable physical data for geological analysis and research.

2.Strong adaptability: can adapt to a variety of geological conditions and operating environment, whether it is hard rock or complex strata.

3.High drilling efficiency: with high drilling speed and work efficiency, can complete the drilling task in a short time.

4.Flexible operation: the walking remote control system is easy to move and operate in different sites.

5.Stability: can maintain stability during drilling, reducing the influence of external factors on core quality.

钻机型号Drilling rig model		FDX-600	FDG-600	FD800
钻进能力 Drilling capacity	BTW(m)	650	650	1000
	NTW(m)	600	600	800
	HTW(m)	300	300	600
液压系统 Hydraulics	冷却方式 Cooling-down method	水冷Water-cooling	水冷Water-cooling	水冷加风冷Water cooling plus air cooling
发动机参数 Engine parameter	型号Model	Yuchai玉柴91kw	Yuchai玉柴91kw	Yuchai six cylinder玉柴六缸92kw
	Power rating 额定功率kw	91	91	92
	Rated speed 额定转速rpm	2200	2200	2200
动力头参数 Power head parameters	Acrot orque 最大扭矩N.m	1600	1600	2000
	Top speed 最大转速rpm	1400	1400	1400
	Give a tour给进行程m	2(可选配)	2(可选配)	2(可选配)
	Build up 提升力T	16	16	20
	Drive推进力T	8	8	10
绳索取芯卷扬参数 Sail rope core lifting parameters	Rope capacity 容绳量m	800	800	1000
	Build up 提升力kN	15	15	20
	Winding speed 提升速度m/min	110	110	110
	Wirerope diameter 钢丝绳直径mm	6	6	6
滑架参数 Sliding frame parameters	Full lift 全高/m	7	7	7
	Borehole Angle钻进角度°	45-90	45-90	45-90
	Compensation trip补偿行程mm	900	900	900
夹持器参数Clamping parameters		BQ/NQ/HQ/PQ	BQ/NQ/HQ/PQ	木马夹持器通孔114mm (根据需求可选配尺寸) Horse Trojan holder hole 114mm (optional size according to requirements)
履带参数 Track parameters	The slope Angle爬坡角度°	30	30	30
	履带类型Track type	橡胶履带 Rubber belt track	钢制履带 Steel tracks	钢制履带 Steel tracks
	Maximum speed最高行驶速度km/h	3	3	3
泥浆泵Slush pump		BW90	BW90	BW160
外形尺寸 Outline dimension	Working size工作尺寸mm	410019007000	410019007000	440020707000
外形尺寸 Outline dimension	Transportation clearance 运输尺寸mm	450019002400	450019002400	450020702400
Overall weight整机重量T		5.7	6.2	7.5
