技术参数Parameter | ||
名义钻井深度Drill depth | 400米(m) | |
配套钻杆Drill rod | 73m/89mm | |
钻孔直径Borchole diameter | 100-450mm | |
动力头扭矩Top head torque | 9500(Nn) | |
伸缩钻塔Retractable Mast | 钻塔高度Height(mm) | 7500 |
钻塔额定负荷Rated load(t) | 35 | |
液压油缸Pull up-Pull down cylinder | 提升力Pull up(t) | 25 |
加压力Pull doun(t) | 12 | |
液压卷扬Hydraul ic winch capacity | 单绳拉力single rope(t) | 3 |
泥浆泵Mud pump | 流量Displacenent (L/min) | 850 / 600 |
压力Pressure(Mpa) | 2/ 3 | |
配套动力Diesel engine | 康明斯Cumins | 132 KW/2200rpm |
空压机Air conpressor | 压力pressure(Mpa) | 2.3 |
气量Air volune(m³/min) | 29 | |
泡沫泵Foam pump | 压力Pressure(Mpa) | 4 |
流量Flow(L/ain) | 42 | |
远输尺寸TransPOrtation size | 长(L)*宽(W)*高(H)(m) | 12000+2500+3500 |

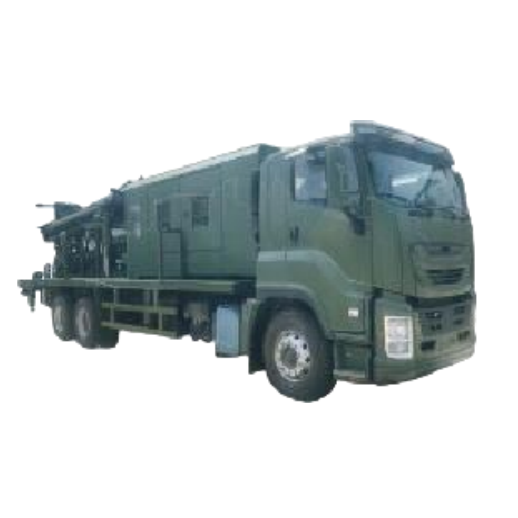

BZCD400CKHW vehicle-mounted multifunctional hydraulic drilling rig is a top rotary drilling rig. The rig adopts the chassis of China National Heavy Duty Truck 6x 4/6x 6/8x 4 special vehicle. The drilling diesel engine, mud pump, air compressor and foam pump are all installed on the truck chassis, with high integration, fast drilling speed, intelligence, convenience and efficiency. BZCD400CKHW multifunctional drilling rig can be equipped with mud pump, air compressor and air foam pump for drilling. It has strong adaptability to formation structure and can be used for drilling in clay, sand, strongly weathered rock, bedrock, basalt and other formations.
