技术参数Parareter | ||
名义钻井深度Drill depth | 150米(m) | |
配套钻杆Drill rod | 168m(6") | |
卷扬能力Winch capacity | 主钩提升力Main hook lifting capaeity (AN) | 240 |
工具卷扬提升力(HN) | 20 | |
主卷扬最大绳速Max-rope speed of main winch(n/nin) | 60 | |
工具卷扬最大绳速Max-rope speed of tool winah(n/nin) | 30 | |
液压油缸Hydraulia aylinder | 油缸提升力Lifting capacity(20Mpa)(kN) | 201 |
油缸给进力Feeding capacity(10Mpa)(KN) | 53 | |
转盘Rotary table | 转盘通径Inmer diameter(mm) | 500 |
转盘转速Rotate speed(rpm) | 96;76;44;24;12 | |
转盘最大扭矩Max-torque(kN.m) | 25 | |
钻塔Mast | 钻塔有效高度Height(m) | 9500 |
钻堪额定负荷Rated load(t) | 28 | |
钻具Drill too | 方钻杆Kelly(mm) | 182*182*4500 |
副钻杆Drill rod(mm) | 168*3000 | |
泥浆泵Nud pump | 6BS砂石泵+6寸清水泵68S gravel pump and 6"centrifugal pump | |
配套动力Diesel engine | 康明斯Cumins 6BT5.9-C180 | 132KM/2200rpm |
运输尺寸Transportation size | 长(L)*宽(W)*高(H)(mm) | 11000×2500×4200 |

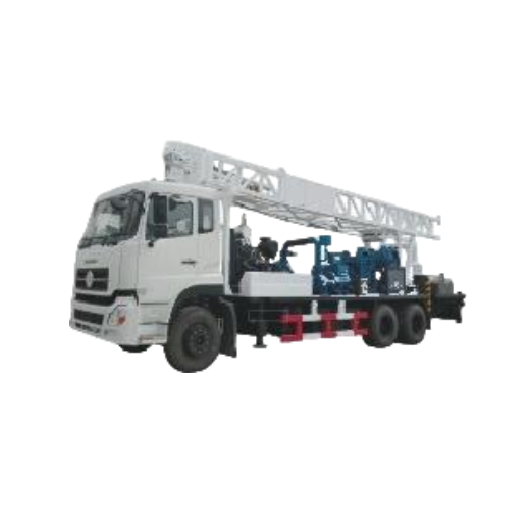

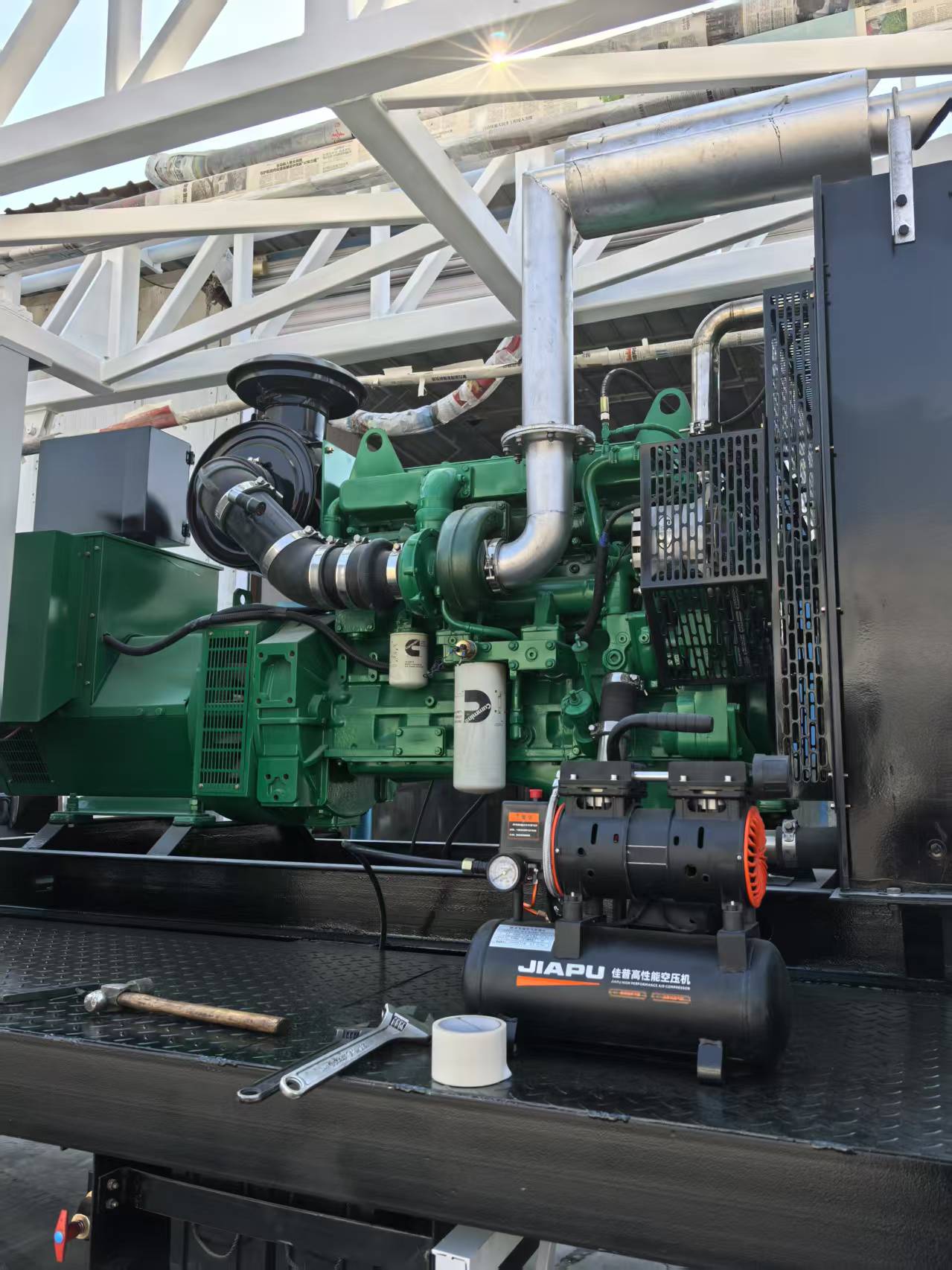

BZCYF150CWY drilling rig is a reverse circulation drilling rig. The rig adopts China National Heavy Duty Truck 6x4 chassis, equipped with 132KW/2200rpm independent diesel engine, four hydraulic jacks and 30KW generator. It is suitable for drilling all kinds of industrial and agricultural well engineering, building foundation, bridge foundation, oil field casing, high-pressure pipeline pile, port wharf and dam foundation in Quaternary loose stratum and gravel stratum.
