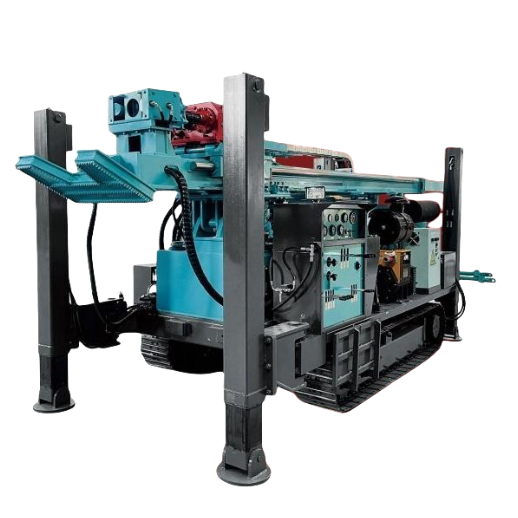

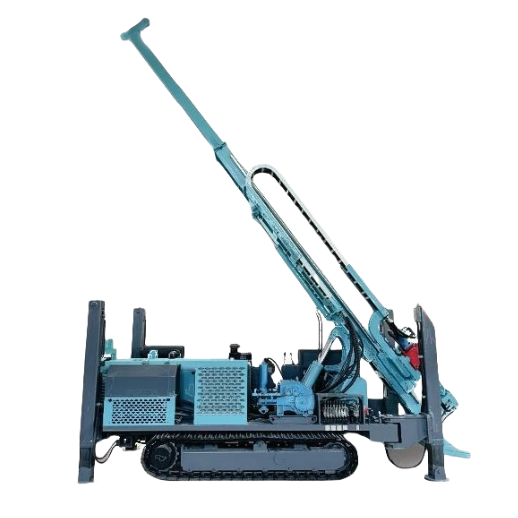

In-the-hole drill FD1000-1200.-Drilling machine-

The power head of the drilling rig is made by advanced manufacturing technology in the industry, which is suitable for high torque and high speed drilling operations. It has strong power while ensuring compact structure.

The unique pressure balancing drilling system in the industry effectively balances the weight of the drill string and accurately controls the drilling pressure, so that the drilling rig can better adapt to the complex formation environment and deep hole drilling process requirements.

The operation console realizes all power operation and drilling operation at the same time, and fully monitors the machine status to facilitate the construction monitoring of the operator. The drill and rod holder has the automatic pressure holding clamping function, which can be synchronized with the power head for quick response, safety and reliability.

Shanbo's proprietary drilling rig mud treatment system uses a customized high pressure mud pump with large pumping capacity and small pulse, which can handle high solid mud and circulating mud.

钻机型号Drilling rig model			FD1000	FD1200
钻进能力 Drilling capacity	BTW(m)		1200	1400
	NTW(m)		1000	1200
	HTW(m)		800	1000
液压系统Hydraulics	冷却方式 Cooling-down method		水冷加风冷 Water cooling plus air cooling	水冷加风冷 Water cooling plus air cooling
发动机参数 Engine parameter	型号Model		潍柴六缸129kw/一汽解放130kw Weichai six-cylinder 129kw/FAW Jiefang 130kw	康明斯132kw
	Power rating 额定功率kw		129/130	132
	Rated speed 额定转速rpm		2300	2300
动力头参数 Power head parameters	Acrot orque 最大扭矩N.m		2600	3000
	Top speed 最大转速rpm		1400	1400
	Give a tour给进行程m		2(可选配)	3.6(可选配)
	Build up 提升力T		24	26
	Drive推进力T		12	12
绳索取芯卷扬参数 Sail rope core lifting parameters	Rope capacity 容绳量m		1200	1400
	Build up 提升力kN		24	24
	Winding speed 提升速度m/min		110	110
	Wirerope diameter 钢丝绳直径mm		8	8
滑架参数 Sliding frame parameters	Full lift 全高/m		7	8.6
	Borehole Angle钻进角度°		45-90	45-90
	Compensation trip补偿行程mm		1200	1200
夹持器参数Clamping parameters			木马夹持器通孔114mm(根据需求可选配尺寸) Horse Trojan holder hole 114mm (depending on need Ask for optional size)	木马夹持器通孔114mm (根据需求可选配尺寸) Horse Trojan holder hole 114mm (depending on need Ask for optional size)
履带参数 Track parameters		The slope Angle爬坡角度°	30	30
		履带类型Track type	钢制履带 Steel tracks	钢制履带 Steel tracks
		Maximum speed最高行驶速度km/h	3	3
泥浆泵slush pump			BW160	BW160
外形尺寸Outline dimension		Working size工作尺寸mm	470031007000	470031008600
		Transportation clearance 运输尺寸mm	470021002500	470021002500
Overall weight整机重量T			84	9
