技术参数Paraneter | ||
名义钻井深度Drill depth | 300米(m) | |
配套钻杆Drill rod | 89mm(3-1/2") | |
卷扬能力linch capacity | 主钩提升力Main hook lifting capacity (kN) | 180 |
副钩提升力Auxiliary hook lifting capacity(kN) | 120 | |
主卷扬最大绳速Max-rope speed of main winh(m/min) | 80 | |
副卷扬最大绳速Max-rope speed of auxiliary winch(m/min) | 100 | |
转盘Rotary table | 转盘通径Inner dianeter(m) | 500 |
转盘转速Rotate speed (rpm) | 47:71:106 | |
转盘最大扭矩Nax-torque(kN.m) | 15 | |
钻塔Mast | 钻塔有效高度Hei ght(mm) | 11900 |
钻塔额定负荷Rated load(t) | 24 | |
钻具Drill too | 方钻杆Kelly(m) | 108*108*7500 |
副钻杆Drill rod(mm) | 89*6000 | |
泥浆泵Mud pump | 流量Displacement (L/nin) | 850 /600 |
压力Pressure(Mpa) | 2/ 3 | |
配套动力Diesel engine | 康明斯Cummins 6BT5.9-0130 | 97 KW/2200rpm |
运输尺寸Transportation size | 长(L)*宽(W)*高(H)(mm) | 12450+2450+4000 |

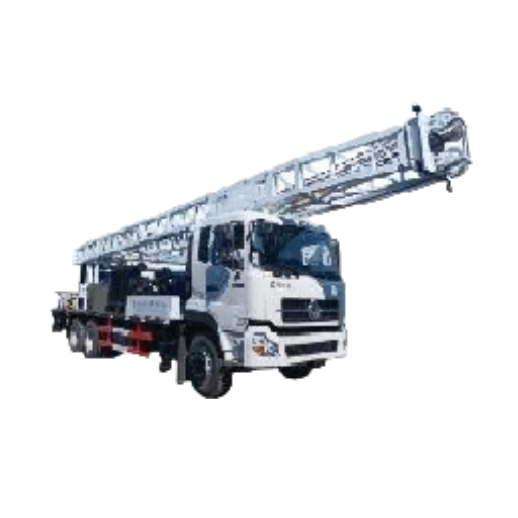

BZC300CJDF vehicle-mounted water well drilling rig is a vehicle-mounted rotary drilling rig. The drilling rig adopts the chassis of Dongfeng truck 6x4 or 6x6 special vehicle. Diesel engine, double mechanical winch, mud pump, rotary table, derrick and Kelly are all installed on the chassis. BZC300CJDF water well drilling rig can drill with mud pump, air compressor and air foam pump. It has strong adaptability to formation structure and can be used for drilling in clay, sand, strongly weathered rock, bedrock, basalt and other formations.
