技术参数Parameter | ||
名义钻井深度Drill depth | 600米(m) | |
配套钻杆Drill rod | 73m/89mm | |
钻孔直径Borehole diameter | 100-450mm | |
动力头扭矩Top head torque | 10000(Nm) | |
伸缩钻塔Retractable Mast | 钻塔高度Height(mm) | 7500 |
钻塔额定负荷Rated load(t) | 50 | |
液压油缸Pull up-Pull down cylinder | 提升力Pull up(t) | 30 |
加压力Pull down(t) | 15 | |
液压卷扬Hydr aulic winch capacity | 单绳拉力single rope(t) | 3 |
泥浆泵Mud pump | 最大流量Max Displacement (L/min) | 1100 |
压力Pressure(Mpa) | 5 | |
配套动力Supporting power | 康明斯Cummins | 153KW/2200rpm |
空压机Air compressor | 压力pressure(Mpa) | 2.4 |
气量Air volume(m³/min) | 29 | |
泡沫泵Foam pump | 压力Pressure(Mpa) | 4 |
流量Flow (L/min) | 42 | |
运输尺寸Transportation size | 长(L)*宽()*高(H)(m) | 12000*2550*3500 |

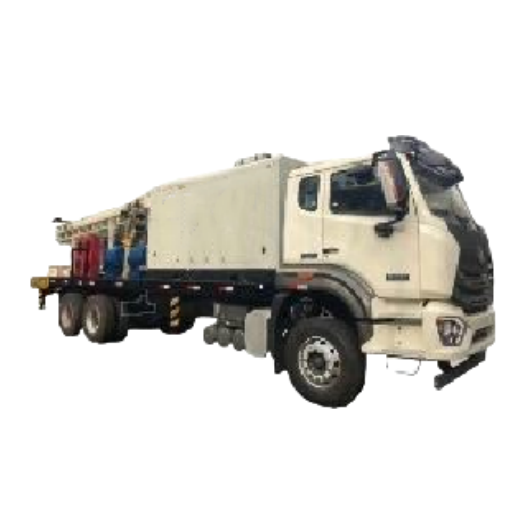

BZCD600CKHW vehicle-mounted multifunctional hydraulic drilling rig is an overhead rotary drilling rig. The drilling rig adopts the chassis of China National Heavy Duty Truck Haowo 6x4/6x6/8x4 special vehicle. The drilling diesel engine, mud pump, air compressor and foam pump are all installed on the automobile chassis, with high integration, fast drilling speed, intelligence, convenience and efficiency. BZCD600CKHW multifunctional drilling rig can be used with mud pump, air compressor and air foam pump. It has strong adaptability to formation structure and can be used for drilling in clay, sand, strongly weathered rock, bedrock, basalt and other formations.
