技术参数Paraneter | ||
名义钻井深度Drill depth | 300米(m) | |
配套钻杆Drill rod | 73mm/89mm | |
钻孔直径Borehole dianeter | 100-450mm | |
动力头扭矩Top head torque | 8500Nn) | |
伸缩钻塔Retractable Nast | 钻塔高度Height(m) | 7500 |
钻塔额定负荷Rated load(t) | 25 | |
液压油缸Pull up-Pull domn aylinder | 提升力Pull up(t) | 20 |
加压力Pull down(t) | 10 | |
液压卷扬Hydraul ic winch capacity | 单绳拉力single rope(t) | 3 |
泥浆泵Mdpurp | 流量Displacenent (L/min) | 850 /600 |
压力Pressure(Mpa) | 2/ 3 | |
配套动力Diesel engine | 康明斯Cumins | 132KW/2200rpm |
空压机Air corpressor | 压力pressure(Mpa) | 2.3 |
气量Air volune(m²/min) | 29 | |
泡沫泵Foan pump | 压力Pressure(Mpa) | 4 |
流量Flow(L/nin) | 42 | |
运输尺寸Transportation size | 长(L)*宽(W)*高(H)(m) | 12000*2500+3500 |

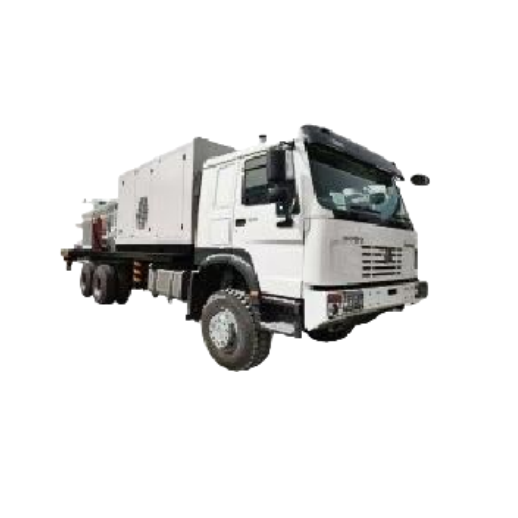

BZCD300CKHW vehicle-mounted multifunctional hydraulic drilling rig is an overhead rotary drilling rig. The rig adopts the chassis of China National Heavy Duty Truck 6x4 or 6x6 special vehicle. The drilling diesel engine, mud pump, air compressor and foam pump are all installed on the truck chassis, which has high integration and high drilling speed. The intelligent, convenient and efficient BZCD300CKHW multifunctional drilling rig can be matched with mud pump, air compressor and air foam pump for drilling. It has strong adaptability to formation structure and can be used for drilling in clay, sand, strongly weathered rock, bedrock, basalt and other formations.
